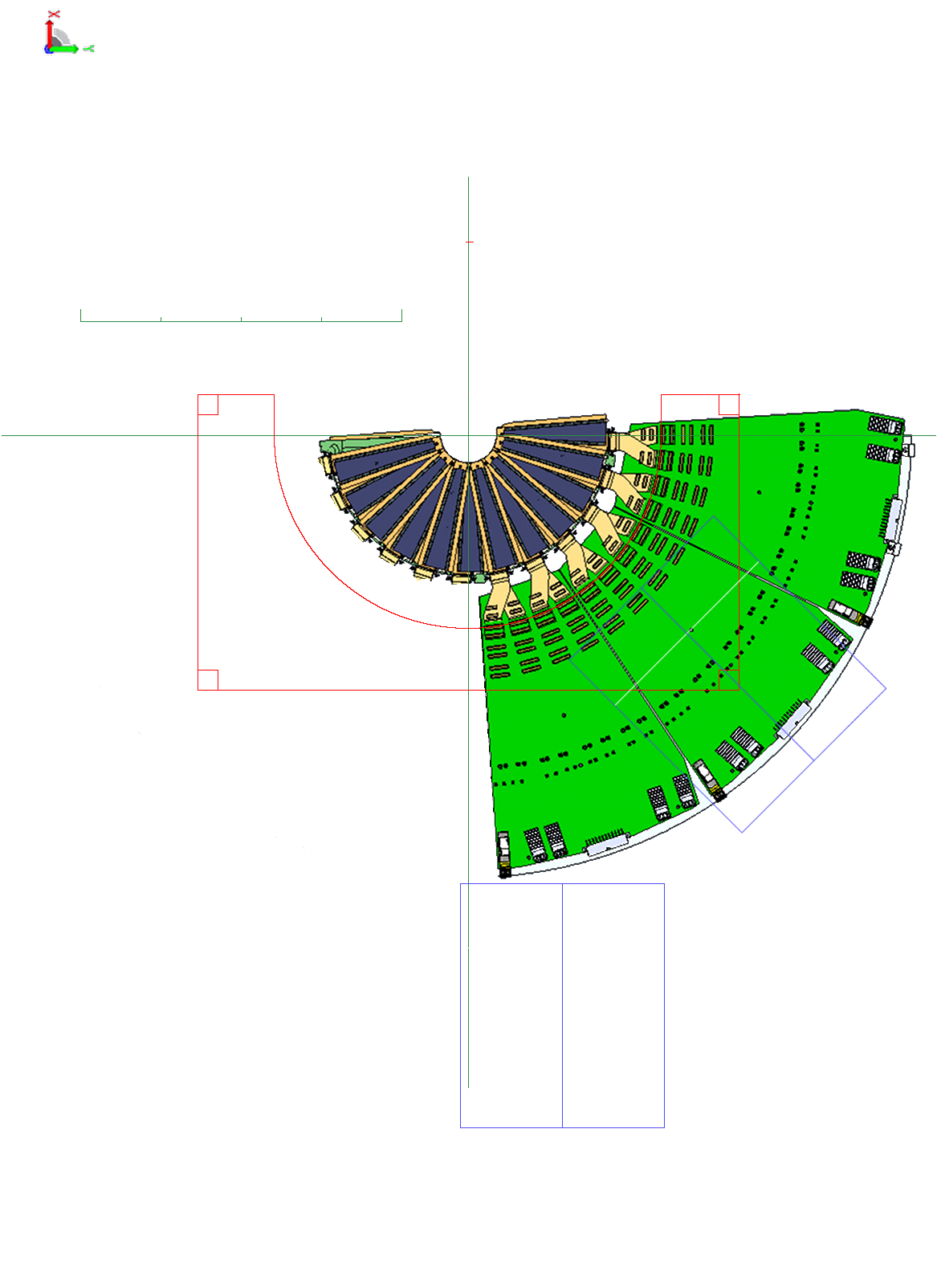

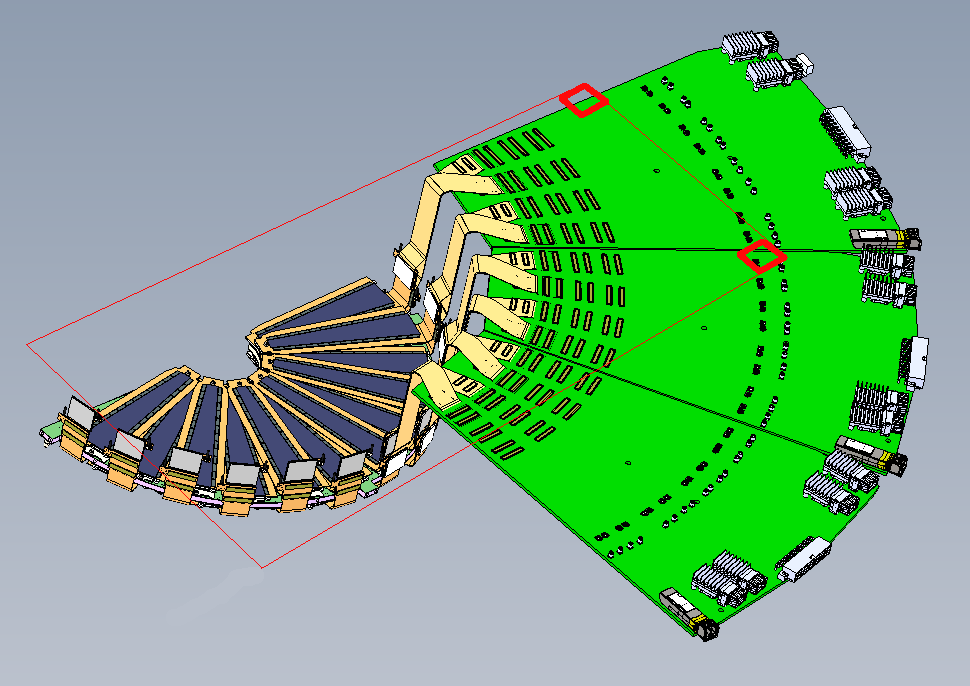

| Suppose we want to test a ROC, in this picture the middle one, and for good measure power up the neighboring wedges. The boards are hooked up to a station-2 disk. Not shown in this picture is the plate that holds the disk, or the four legs. The position of the legs interferes with the ROCs, as indicated shematically by the red squares. |
|
