Cable geometry checks
There are 2 sets of files: Roger Smith's (HYTEC) original engineering drawings (which I have in pdf format), and Dave Lauderdale's (UNM) drawings, also in pdf format. I import both into Gimp at a resolution of 100 px/in, and overlay them to check the dimensions. At this resolution, this check is good to 1 px, which is about .025 mm. The *.xcf files are the native Gimp format, where you can turn the different layers off and on to see how good the correspondence is.

In the drawings below, Roger's cables are in gray, and Dave's are in light blue for the outline, and green for the connector solder masks.

You can click on the drawings to get the full size

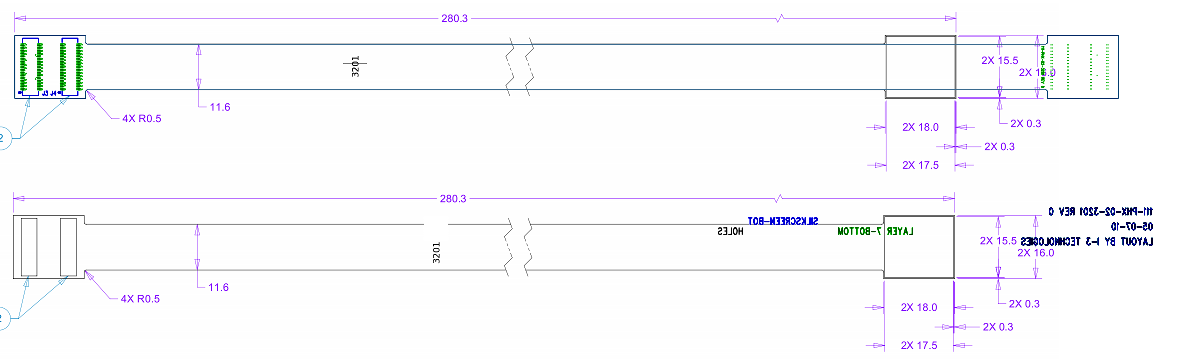

Station 0 type 1 (3201) 3201_both.xcf

OK

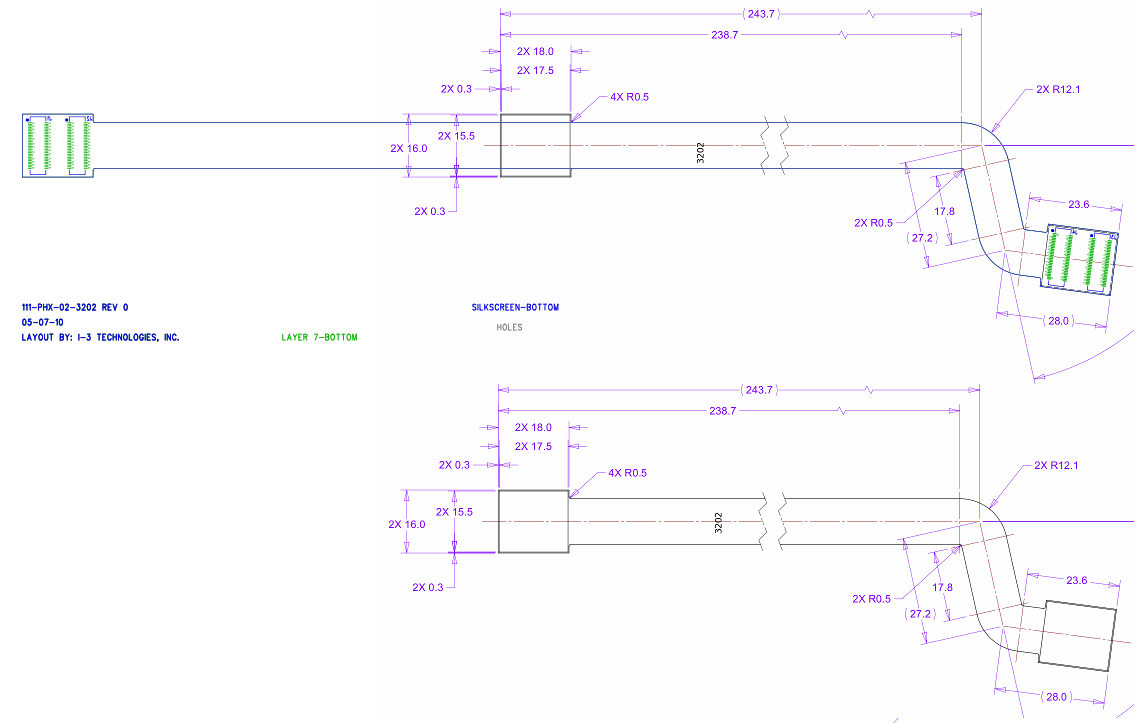

Station 0 type 2 (3202) 3202_both.xcf

OK

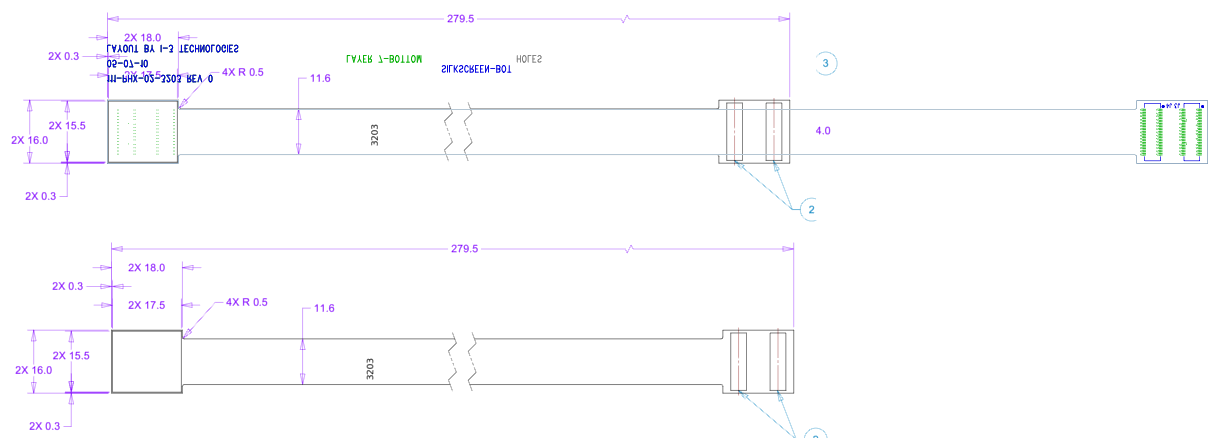

Station 0 type 3 (3203) 3203_both.xcf

OK

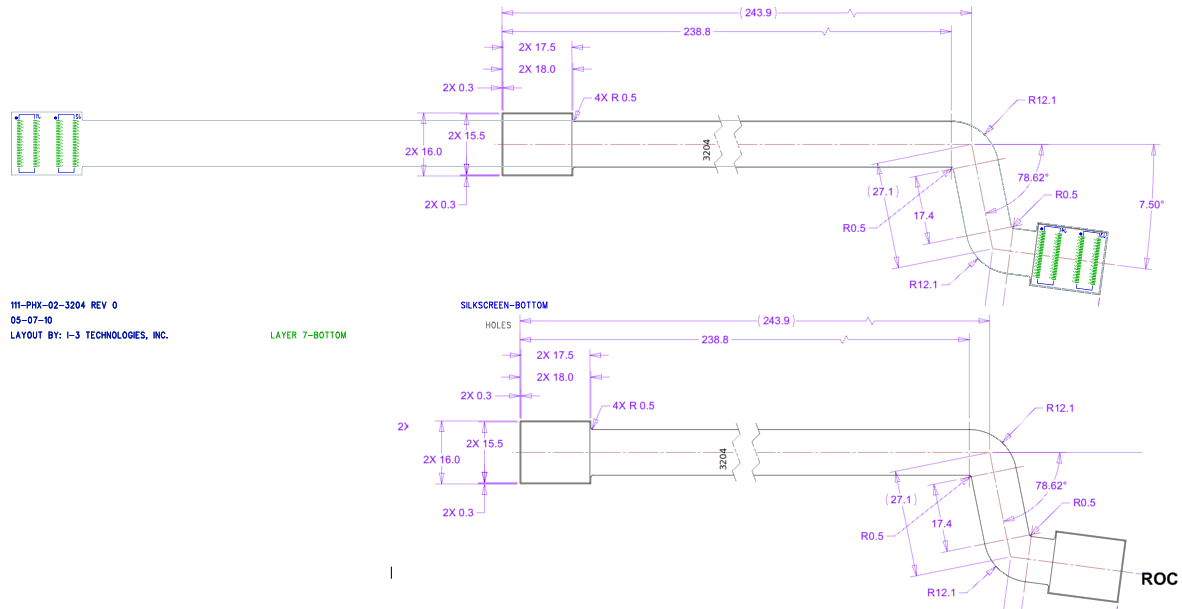

Station 0 type 4 (3204) 3204_both.xcf

OK

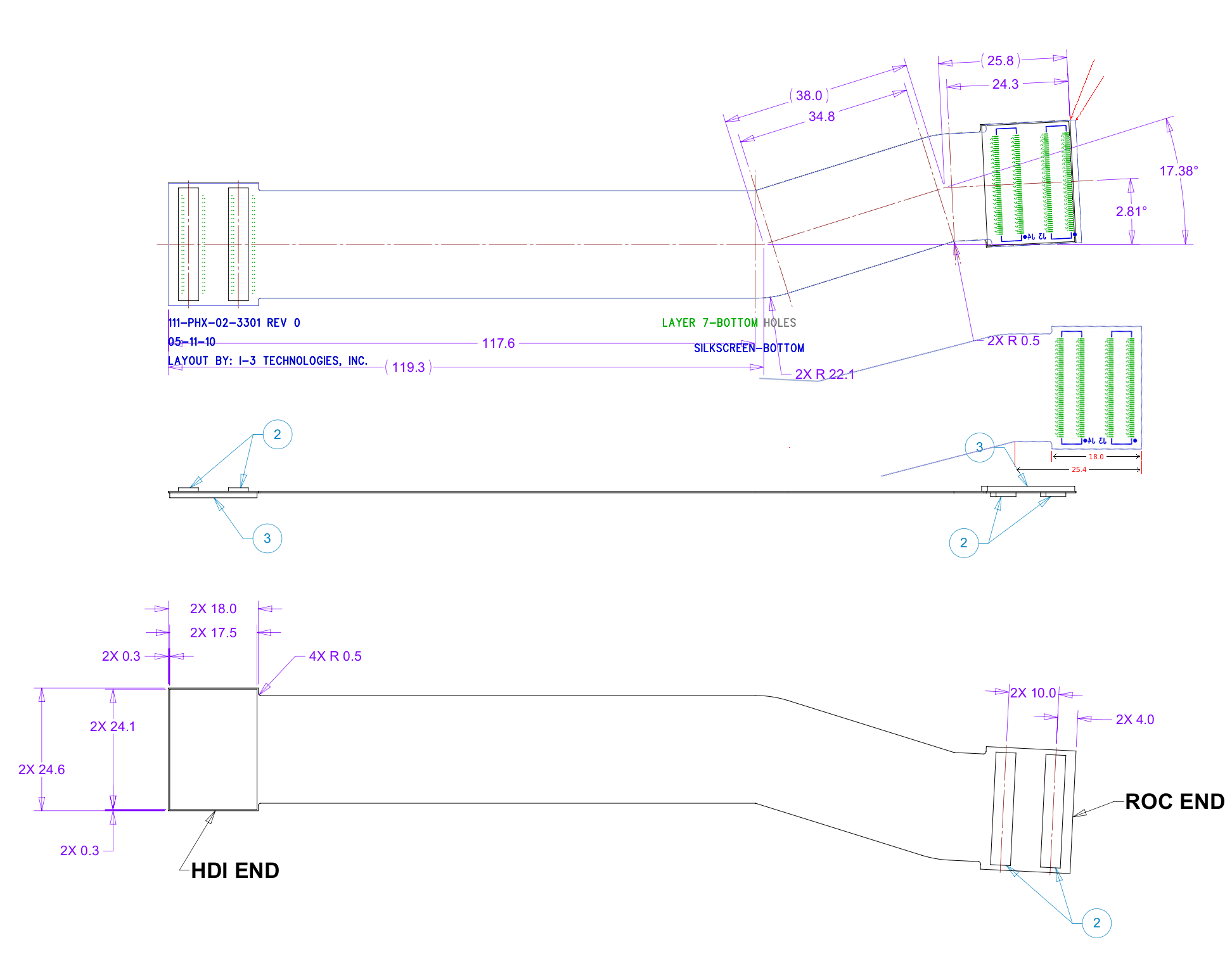

Station 1 type 1 (3301) 3301_both_2.xcf

version 1: 1.06 mm too long

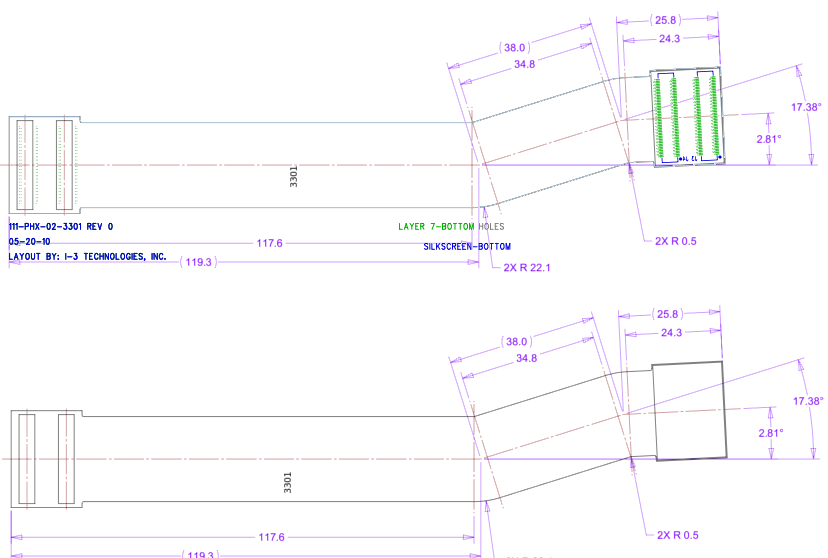

Station 1 type 1 (3301) 3301_both.xcf

version 2 (20 May): OK

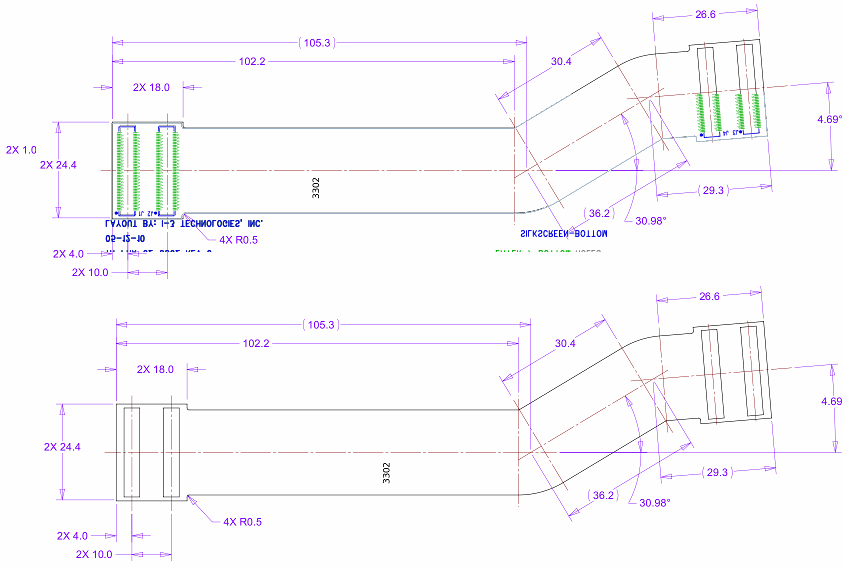

Station 1 type 2 (3302) 3302_both.xcf

OK

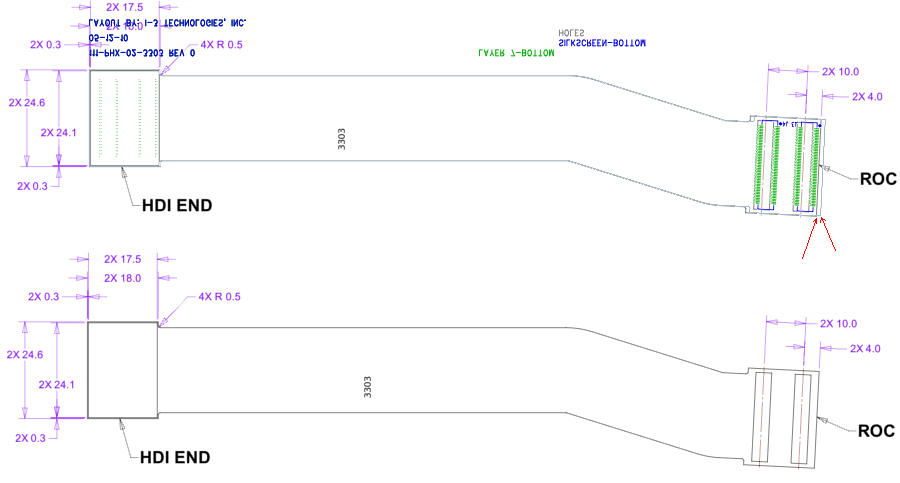

Station 1 type 3 (3303) 3303_both.xcf

Version 1: 1mm too long on the ROC end

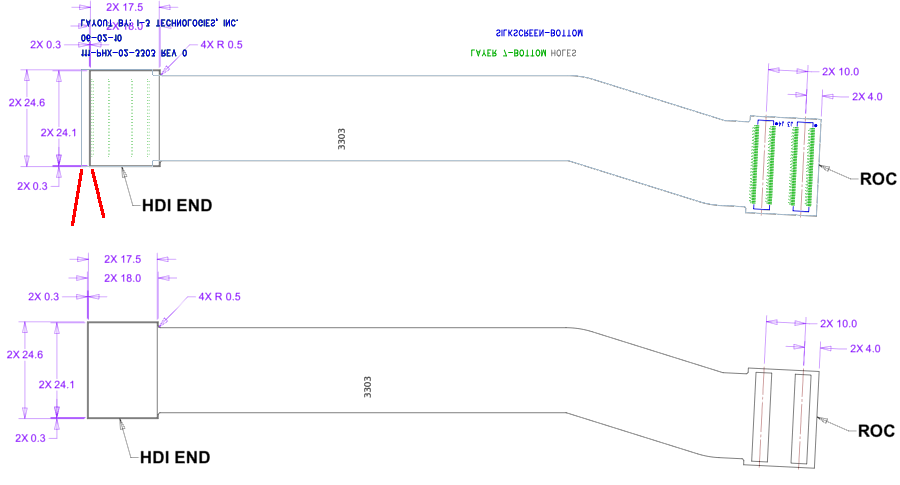

Station 1 type 3 (3303) 3303_both_2.xcf

Version 2: 2mm too long on the HDI end

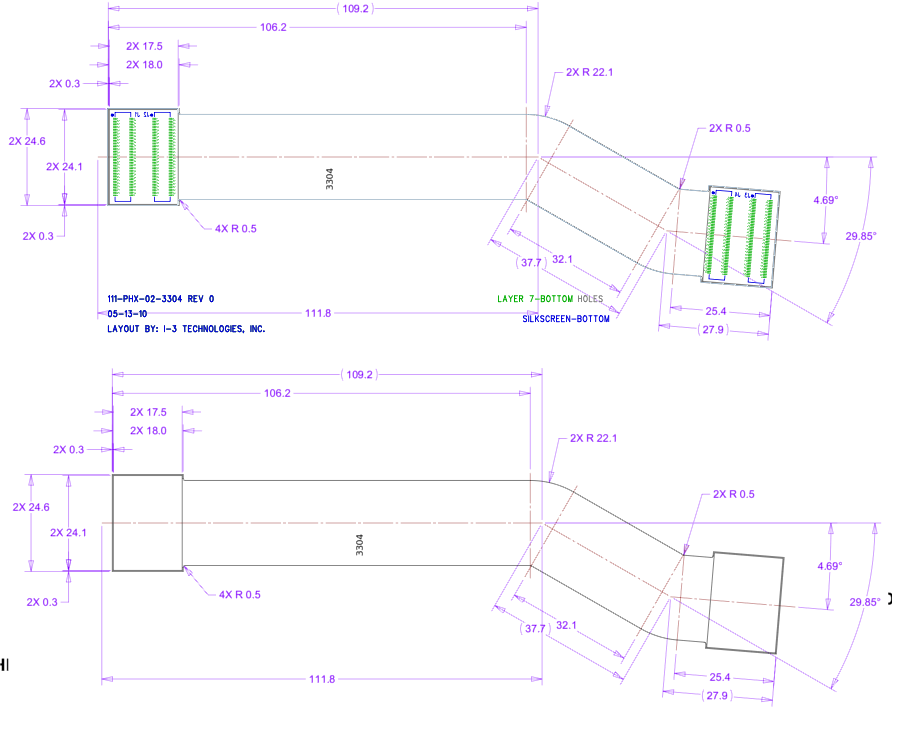

Station 1 type 4 (3304) 3304_both.xcf

OK

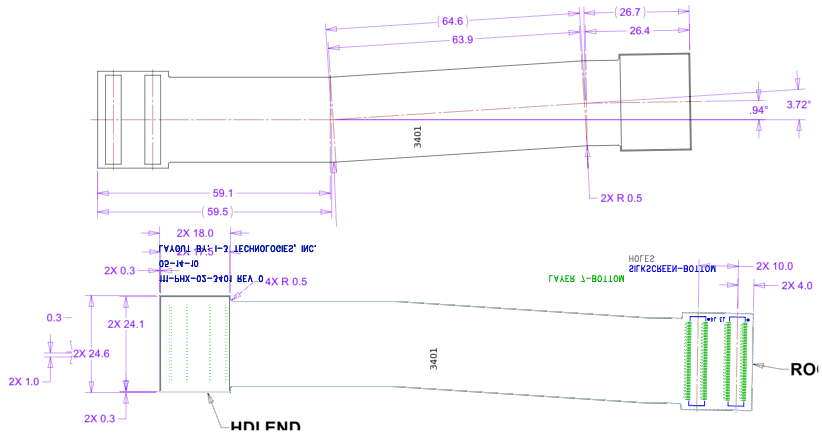

Station 2 type 1 (3401) 3401_both.xcf

OK

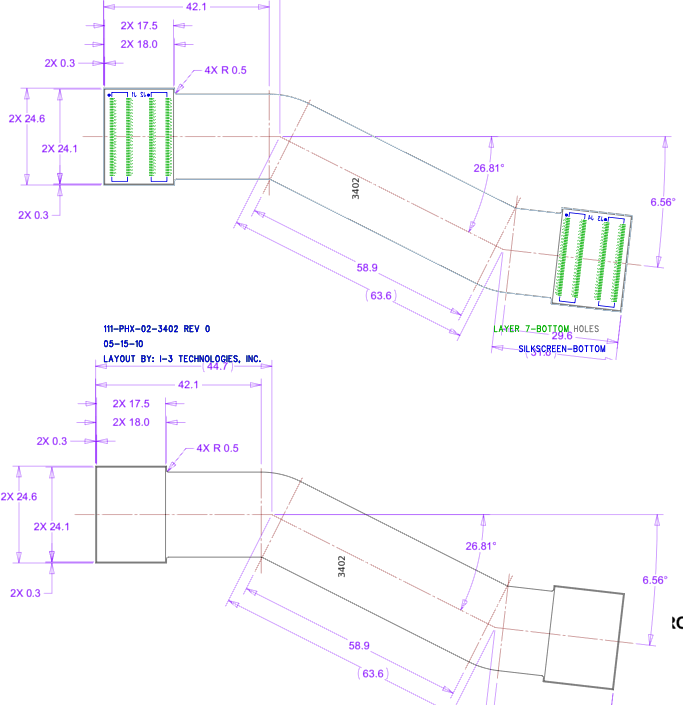

Station 2 type 2 (3402) 3402_both.xcf

OK

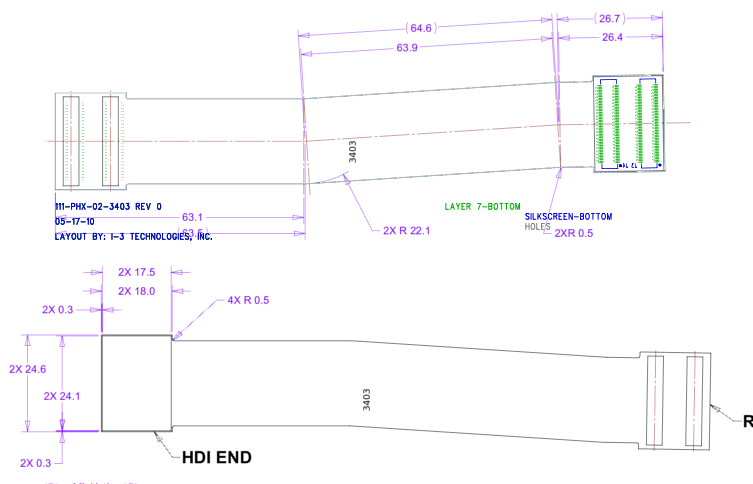

Station 2 type 3 (3403) 3403_both.xcf

OK

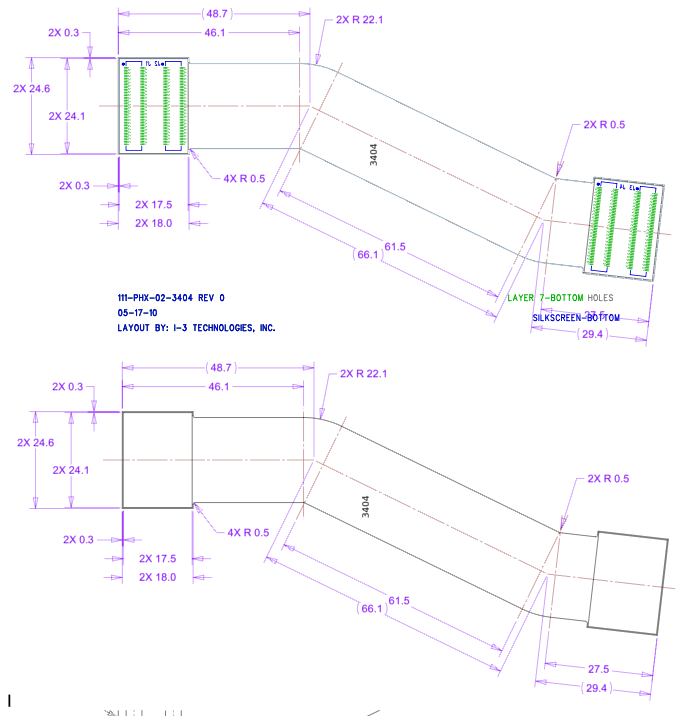

Station 2 type 4 (3404) 3404_both.xcf

OK

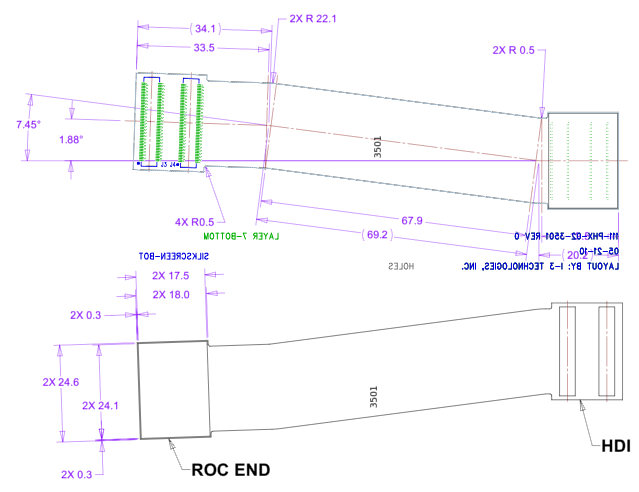

Station 3 type 1 (3501) 3501_both.xcf

OK

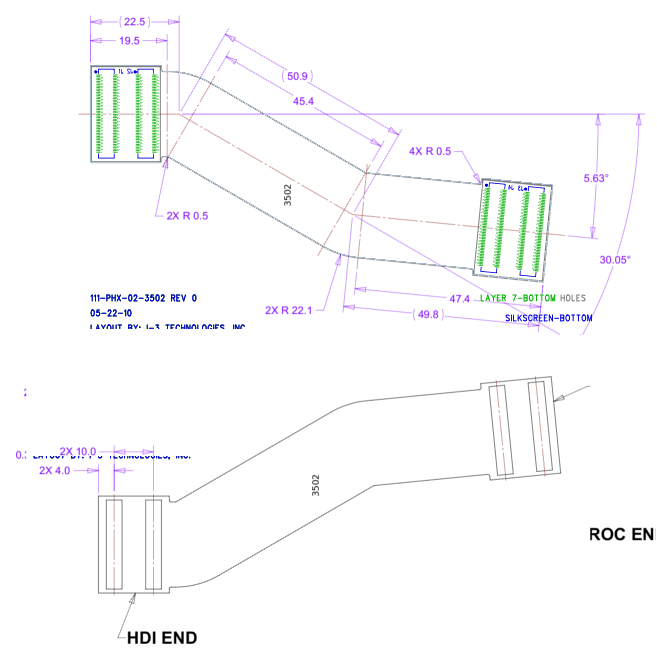

Station 3 type 2 (3502) 3502_both.xcf

OK

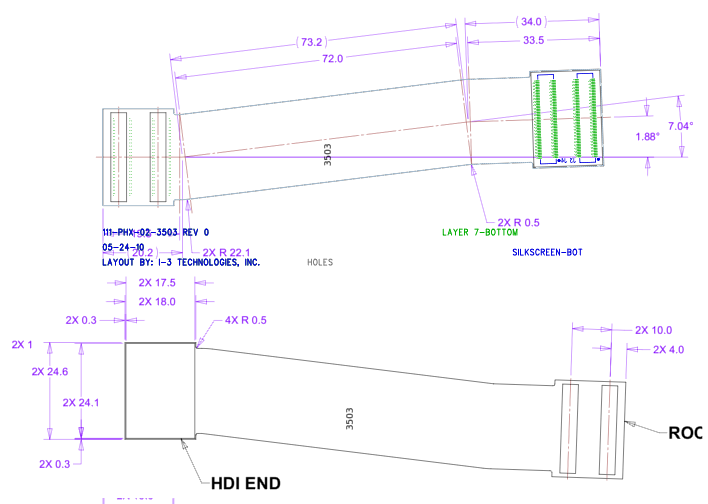

Station 3 type 3 (3503) 3503_both.xcf

OK

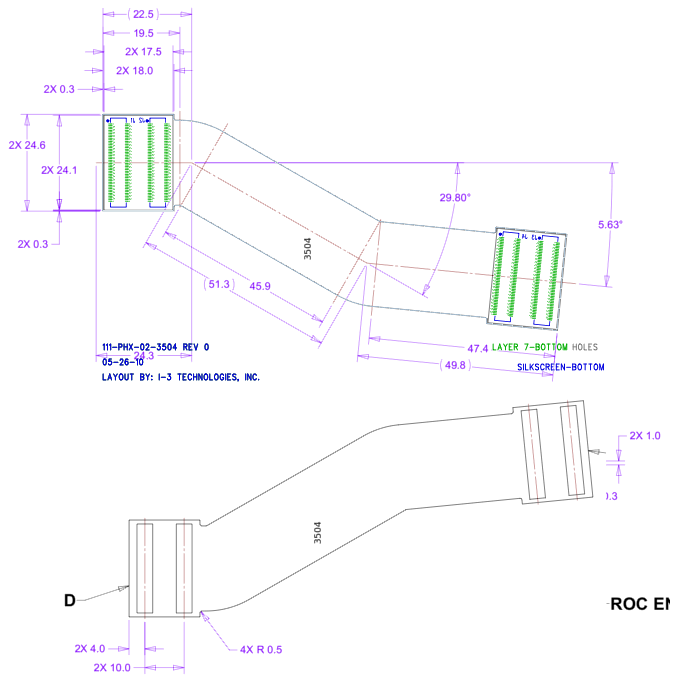

Station 3 type 4 (3504) 3504_both.xcf

OK





May 2010 Hubert van Hecke
