Extension cable bending

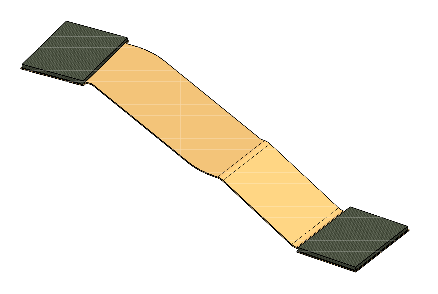

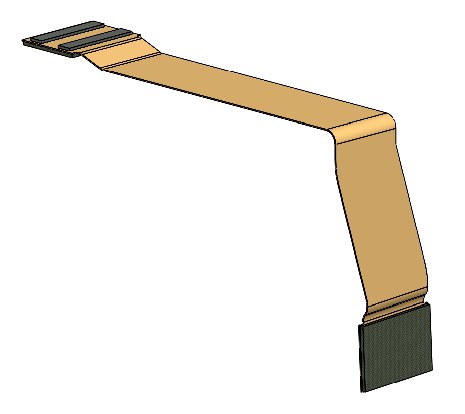

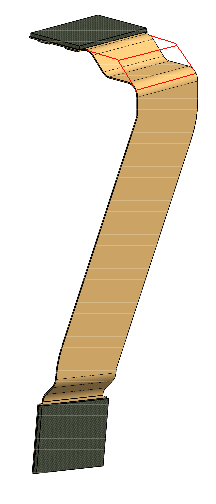

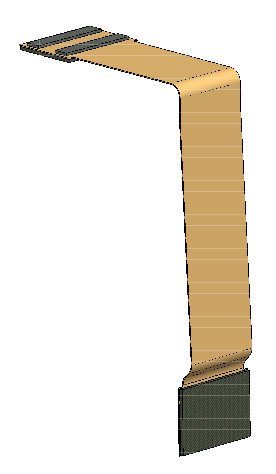

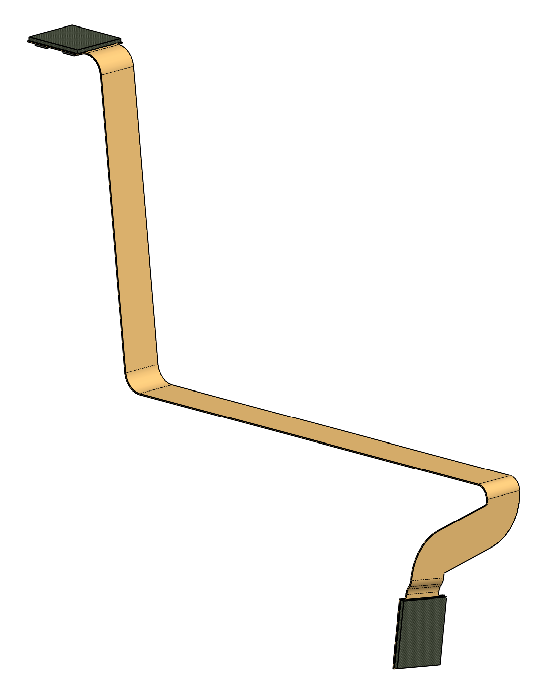

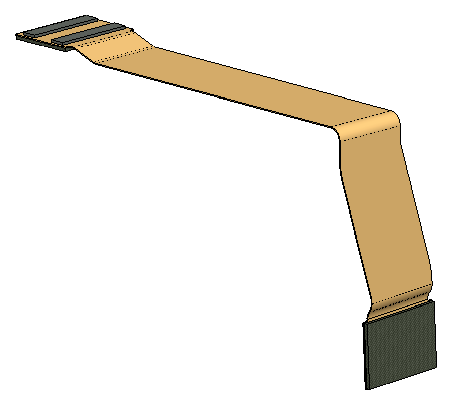

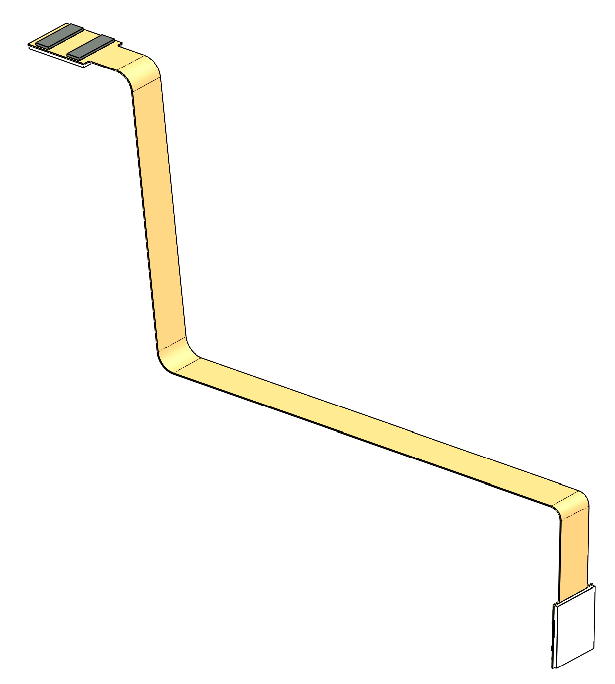

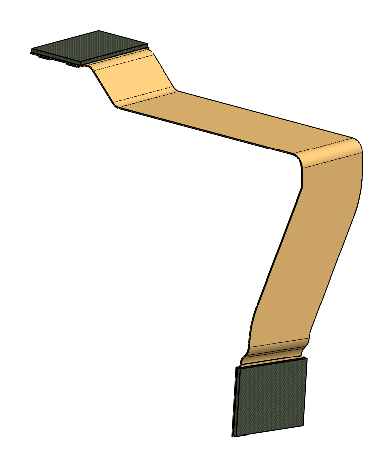

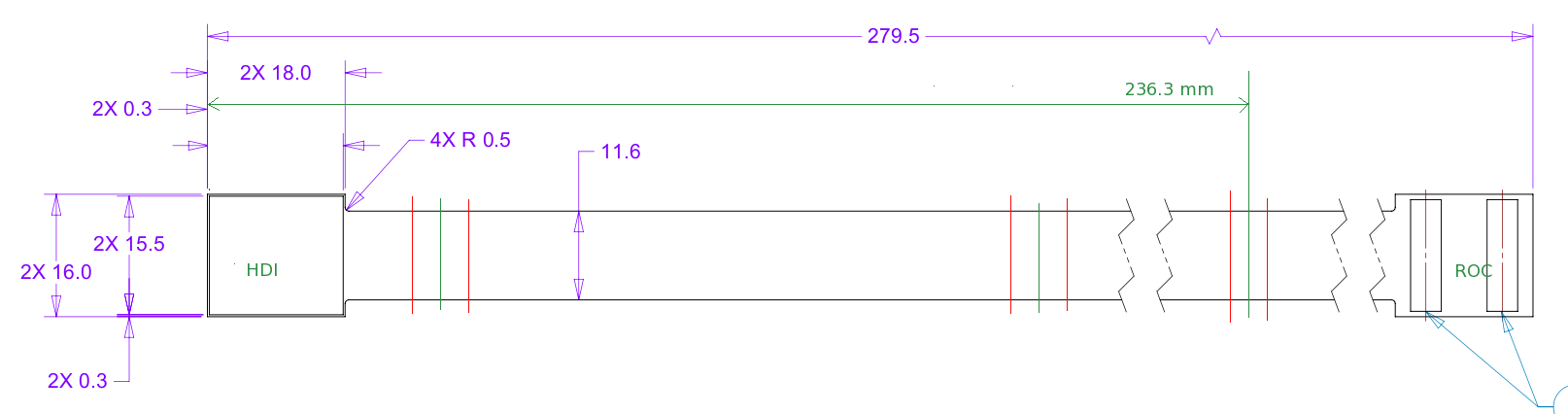

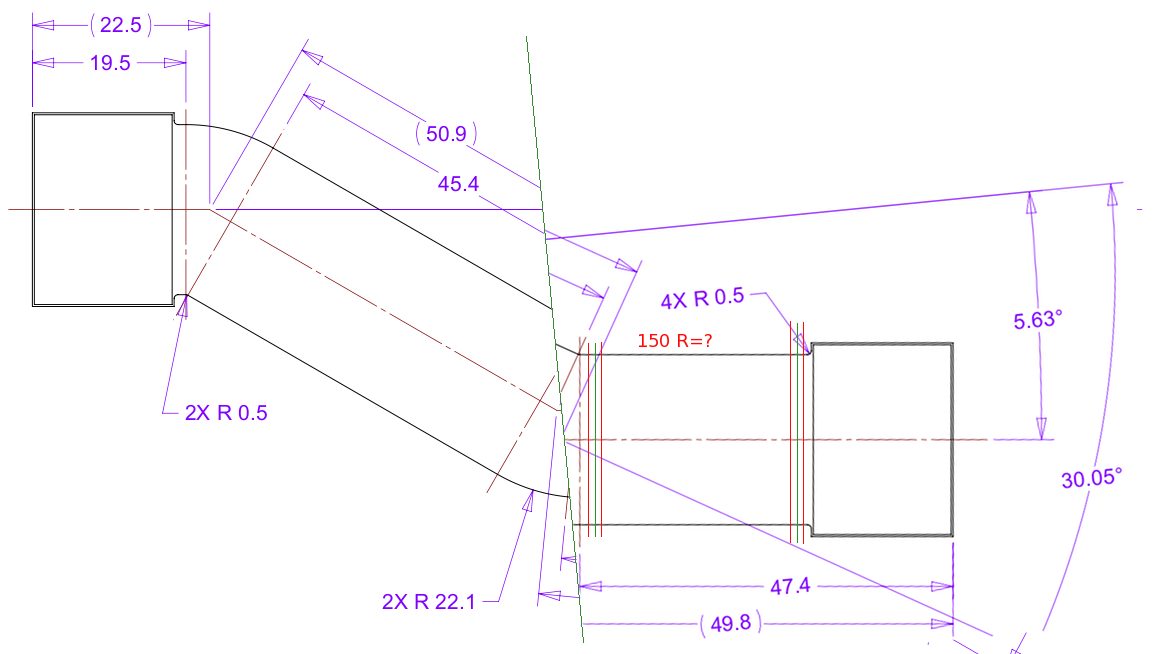

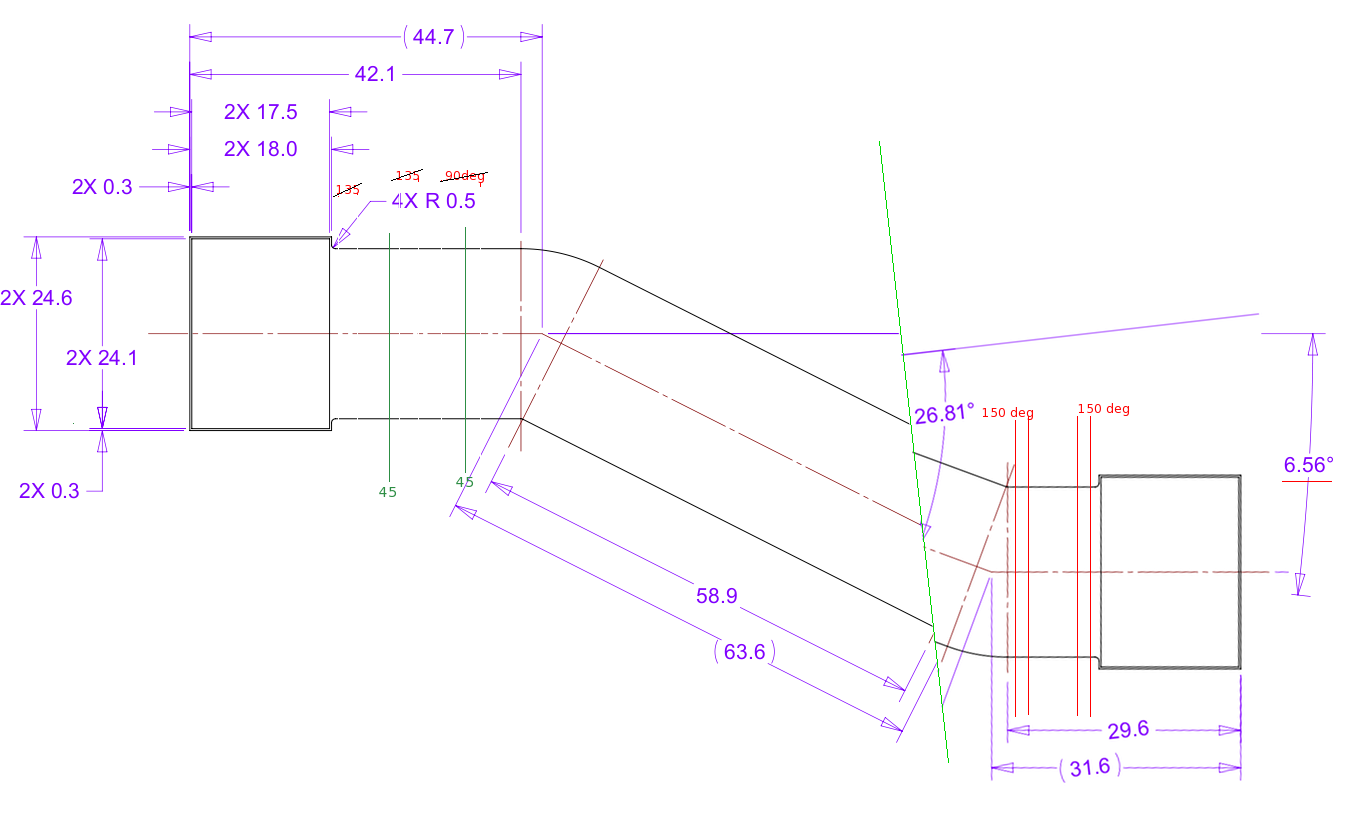

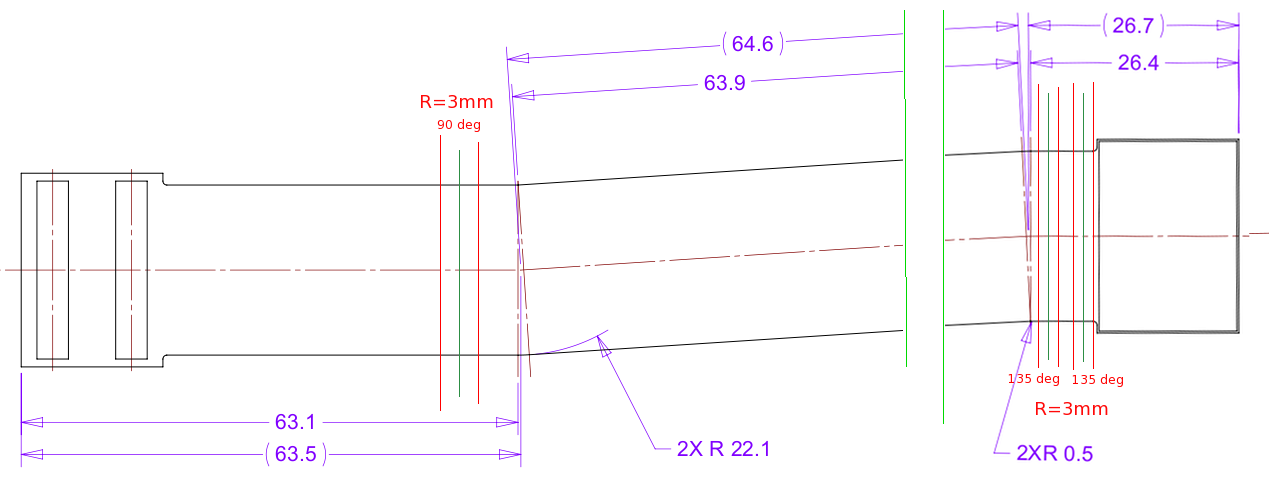

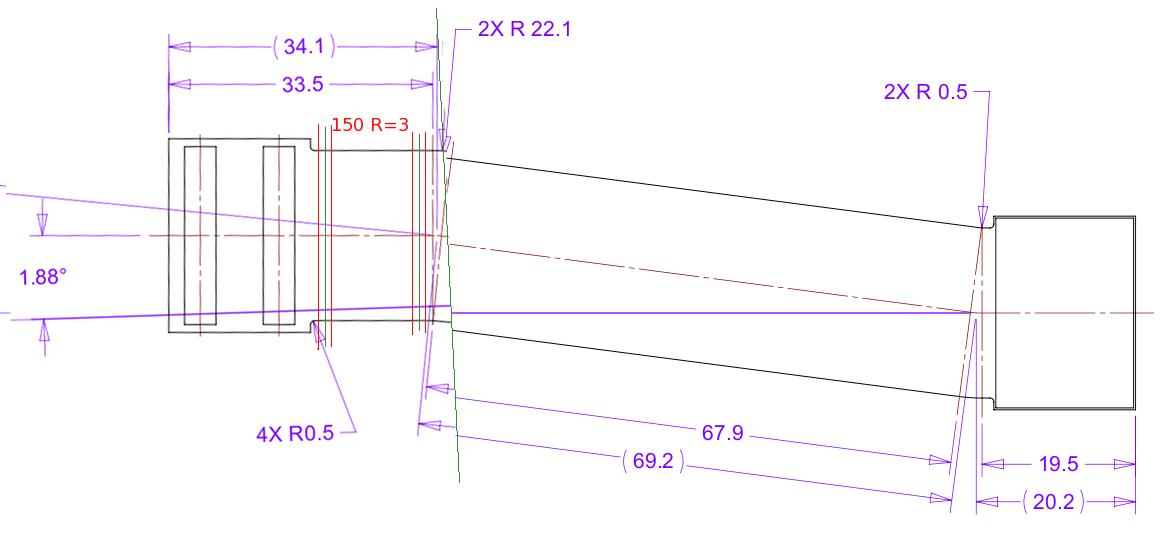

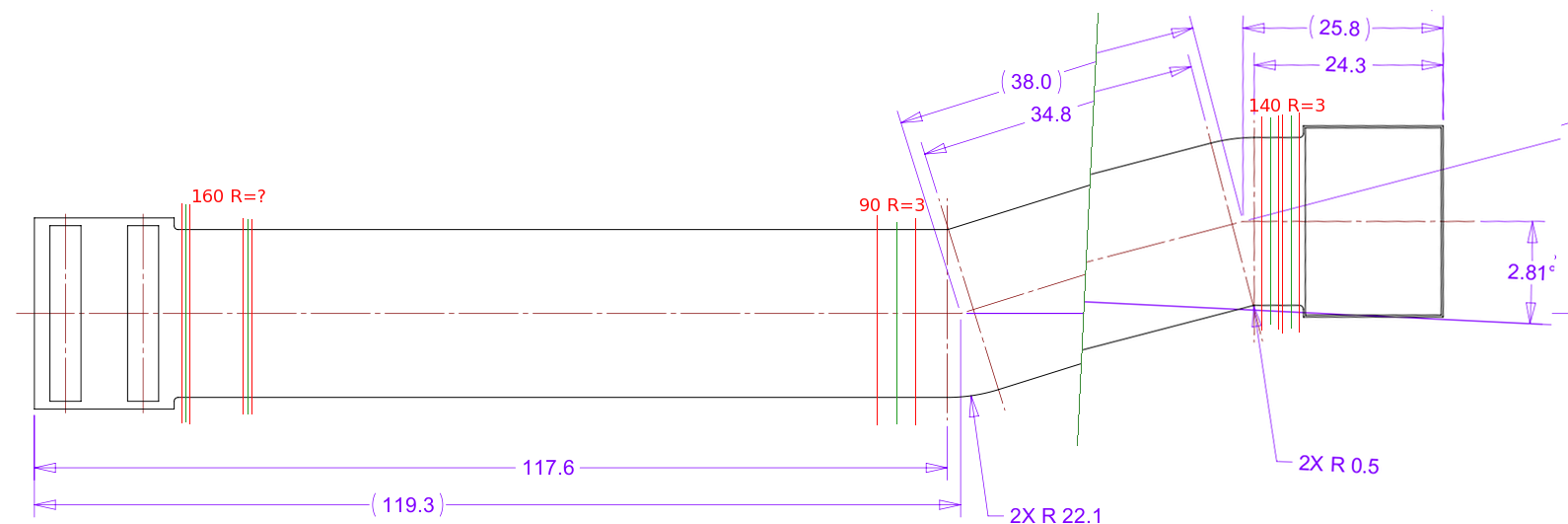

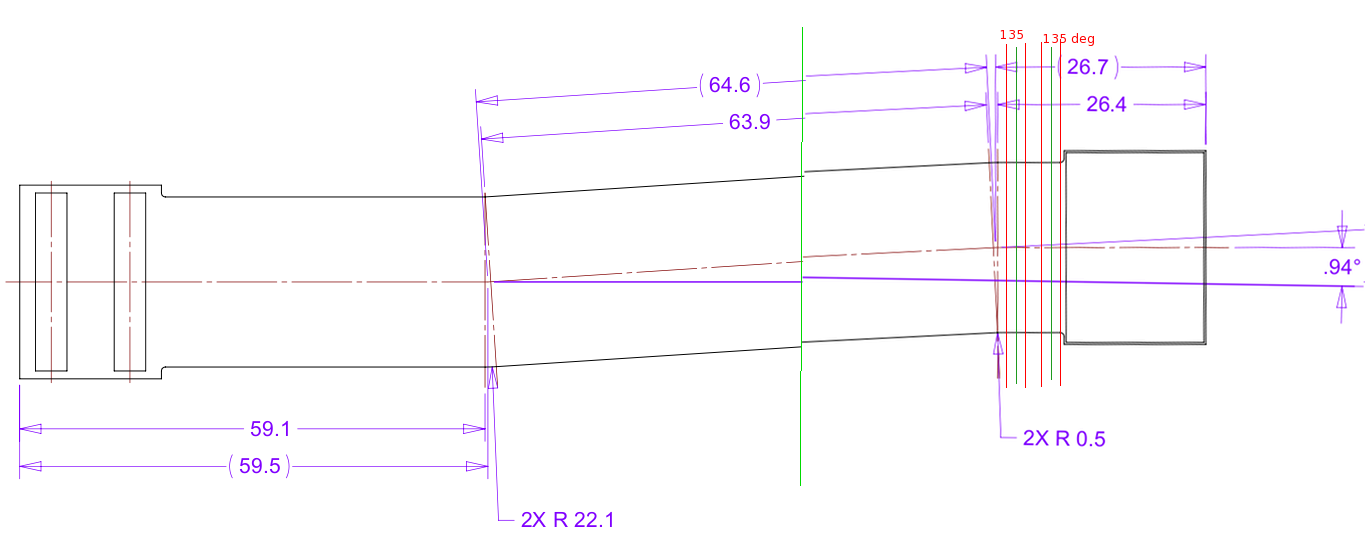

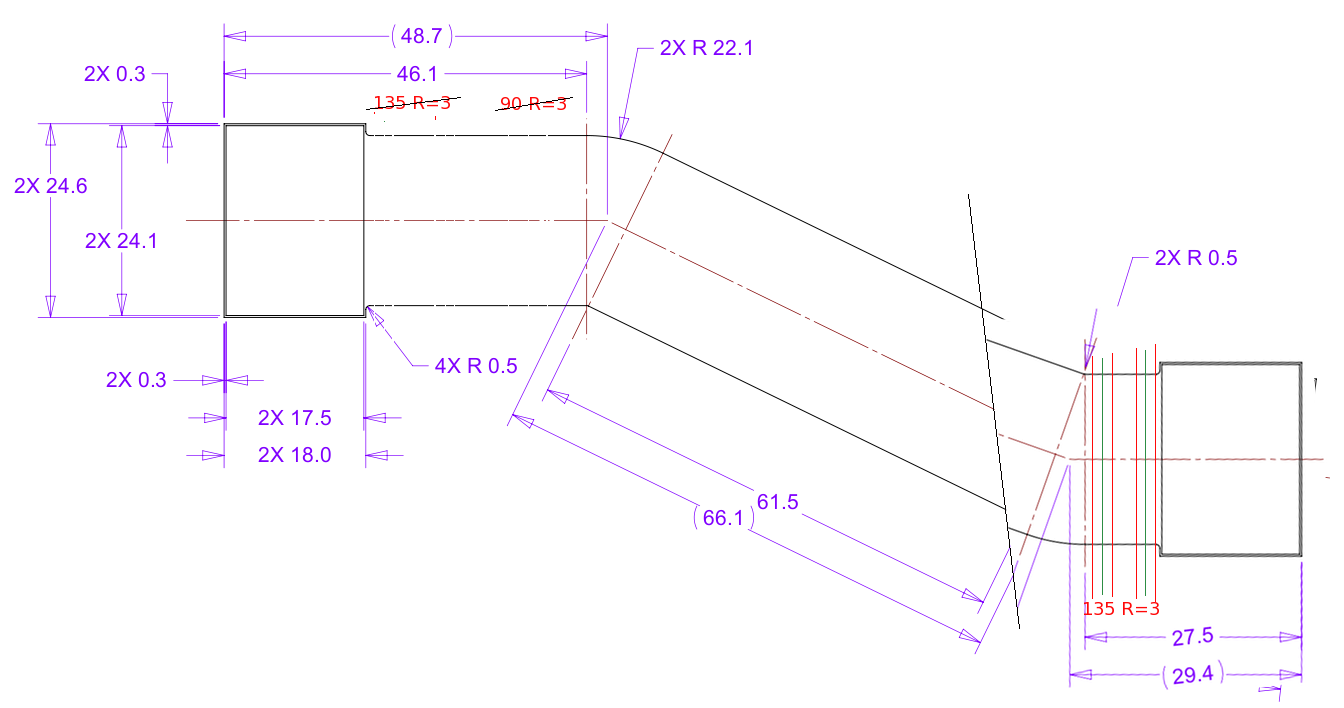

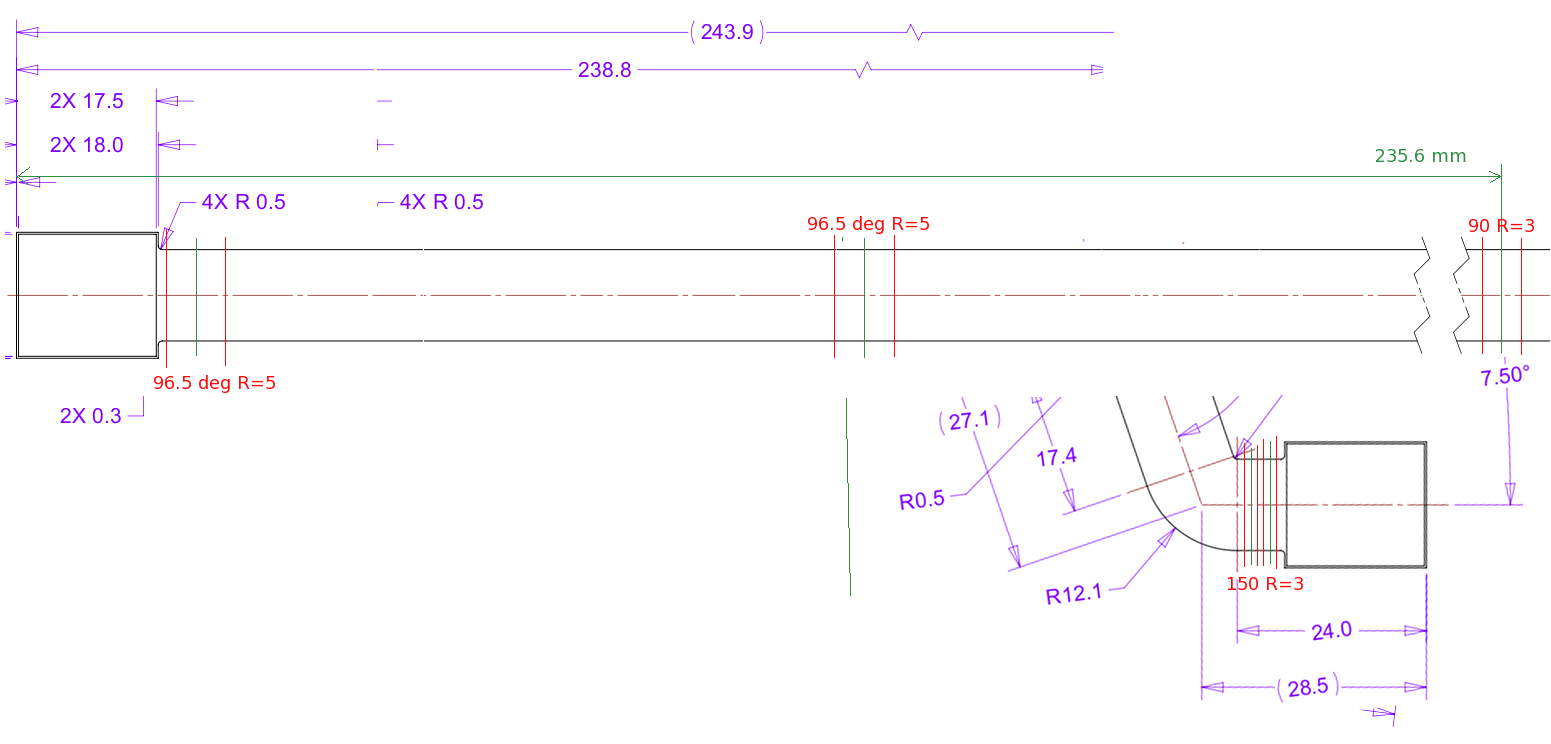

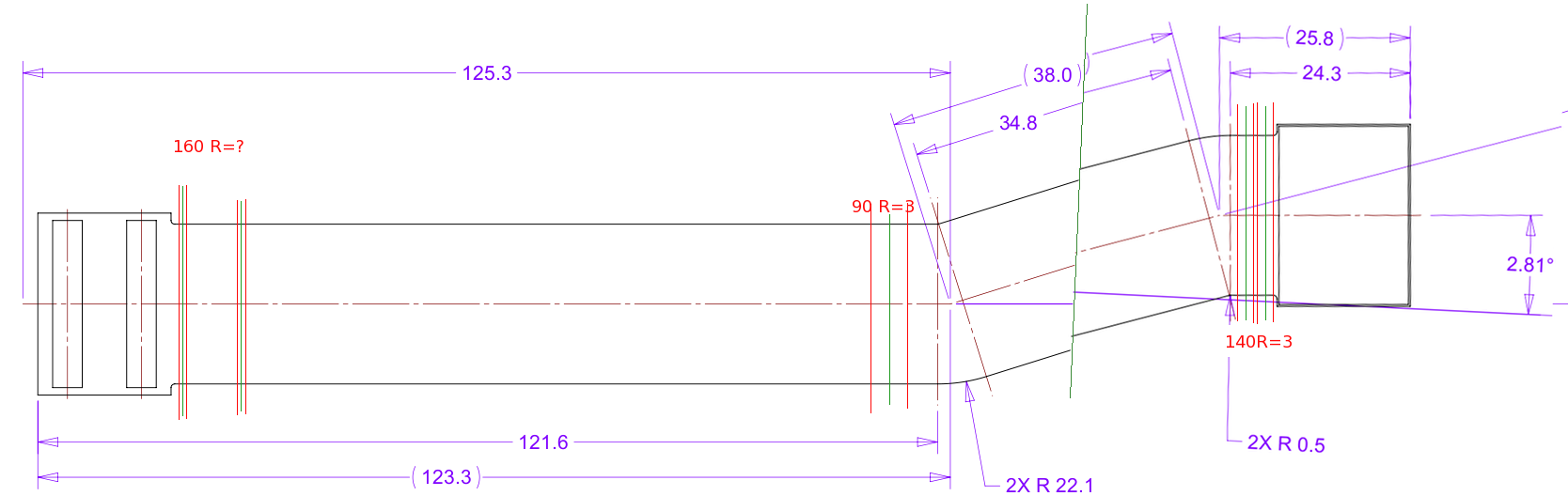

The drawings

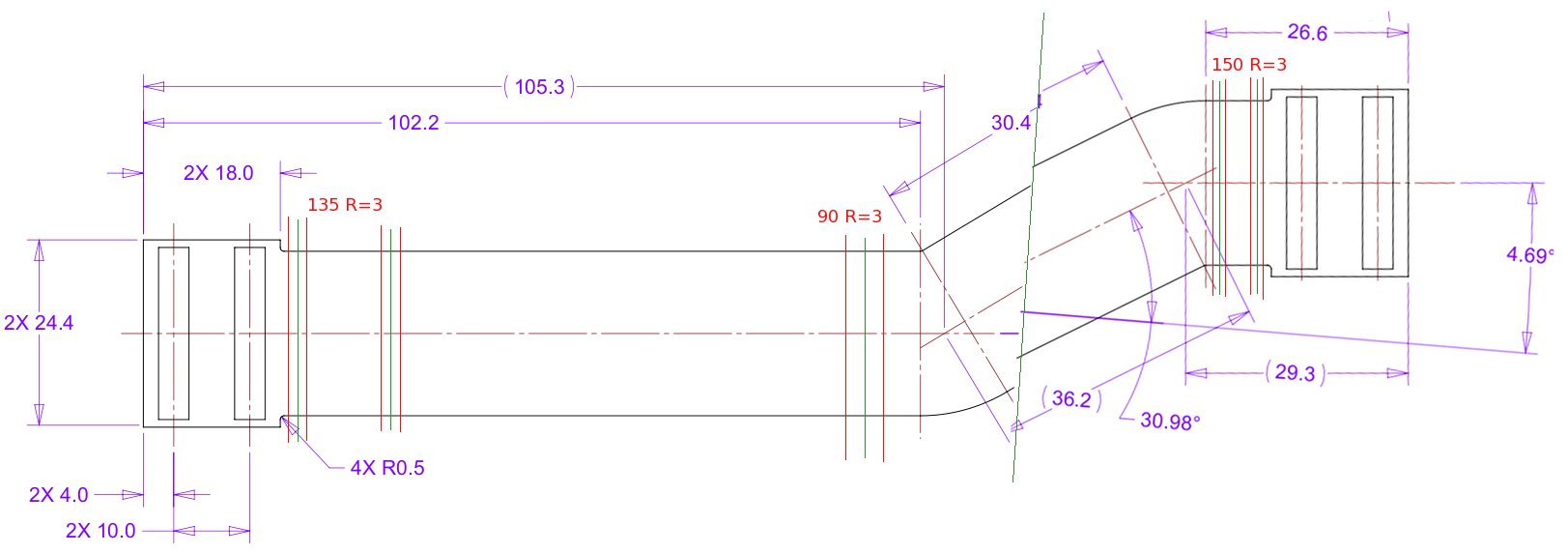

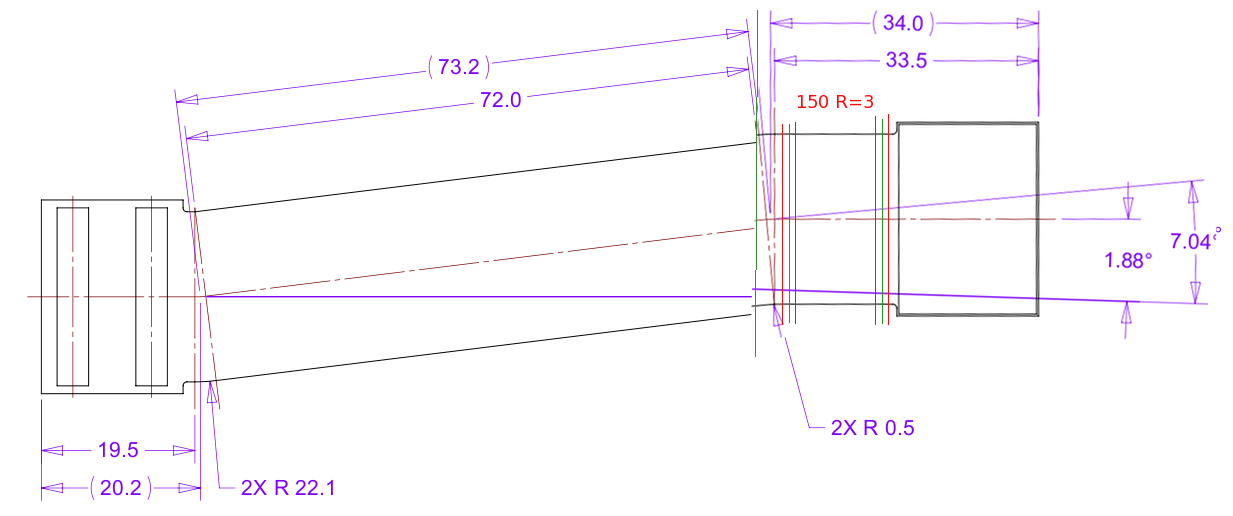

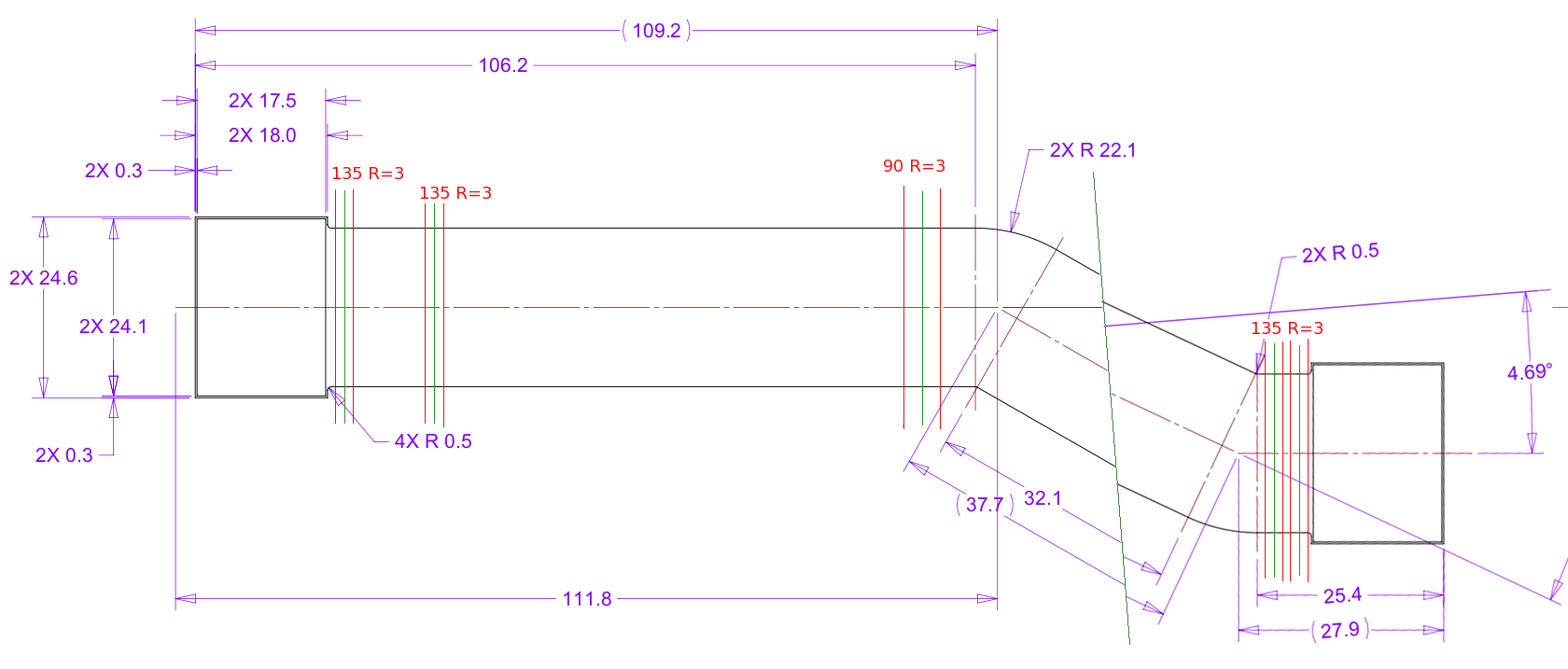

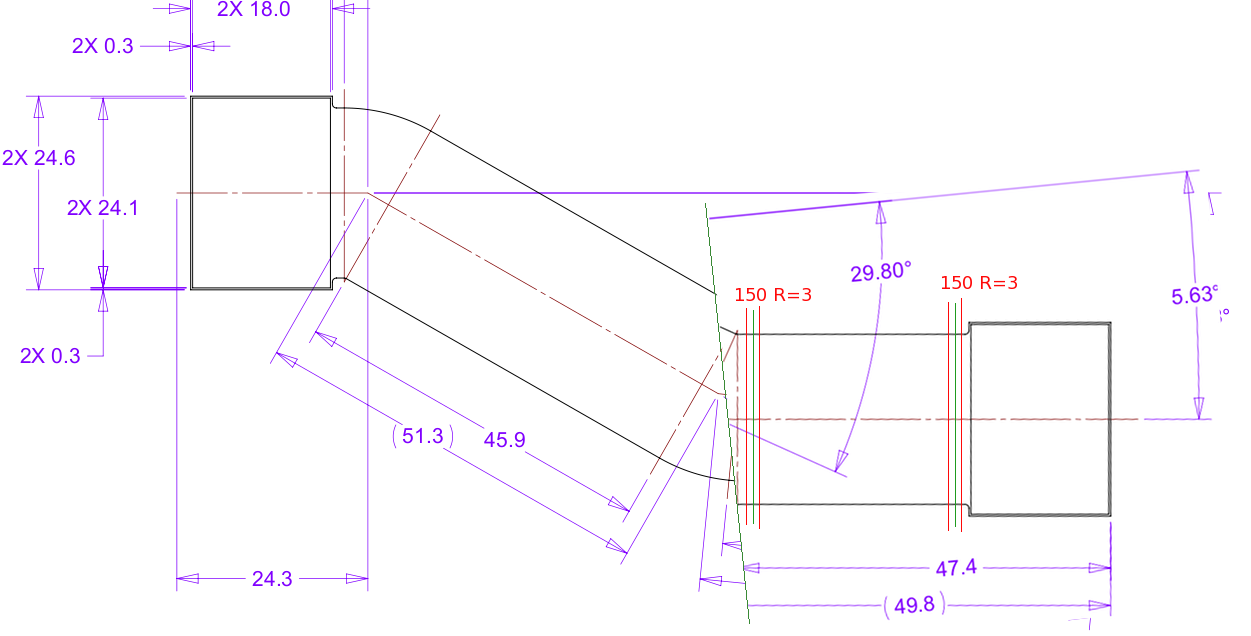

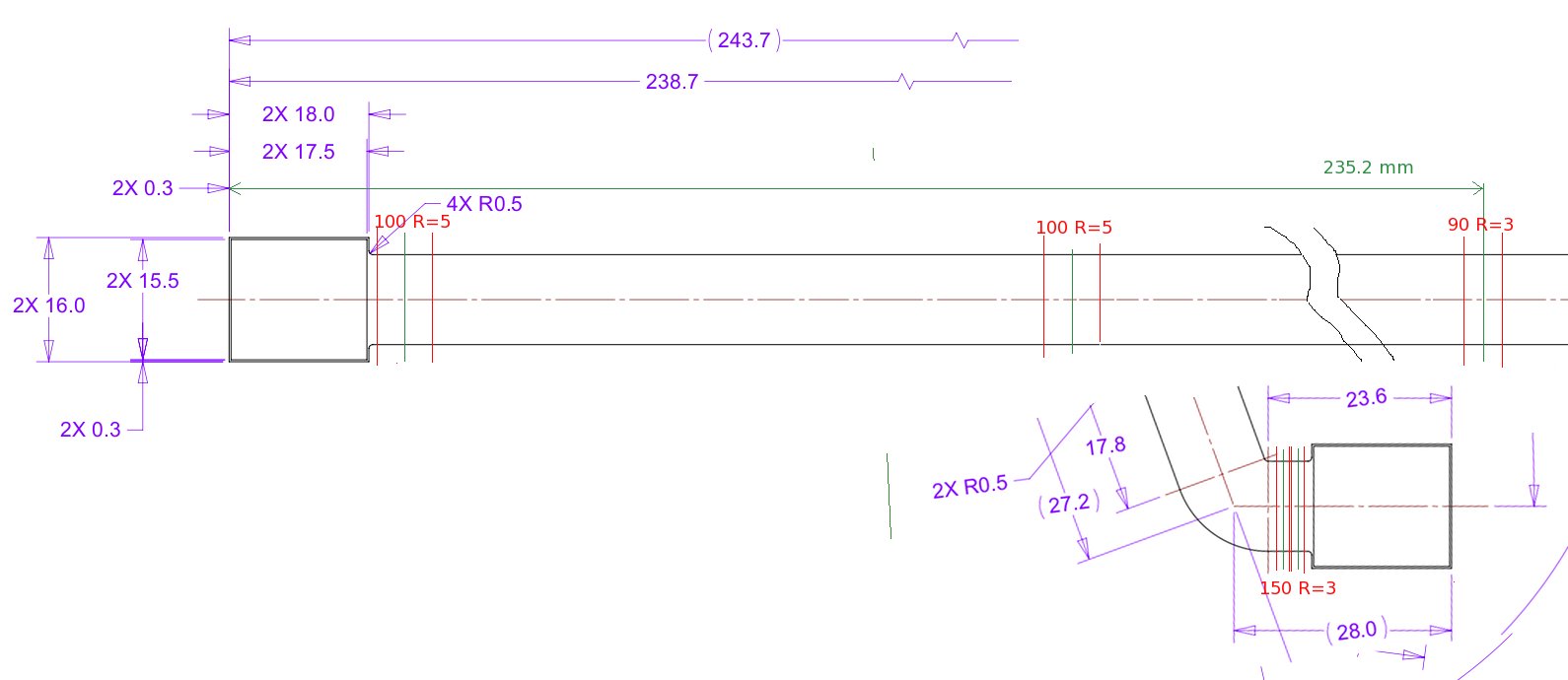

have marks in red where the bends should begin and end, with the green line
showing the center. Note that the
drawing is cut, indicated by the green line(s), and both connector ends are rotated to be straight on the page.

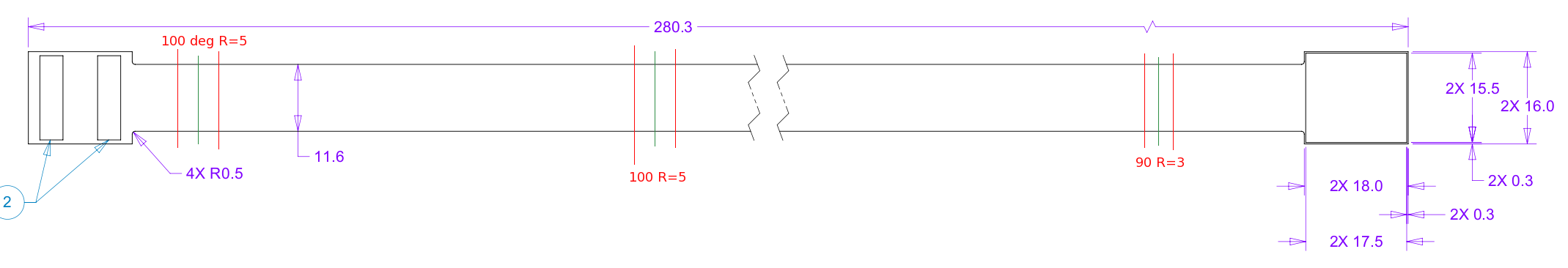

Markings in red like
150 R=3 means there is a 150° bend, with a 3mm radius of curvature.
The size of the drawing is such that it comes out 1:1 if printed at 200px/inch.
Bending Data Base entry forms
Summary of bends:
cable hdi end middle roc end
---------------------------------

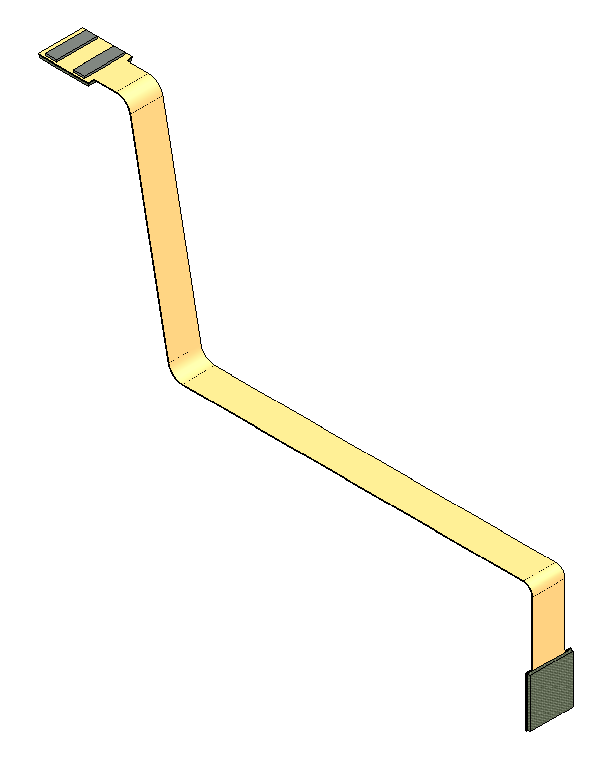

3201 2x80 90 -

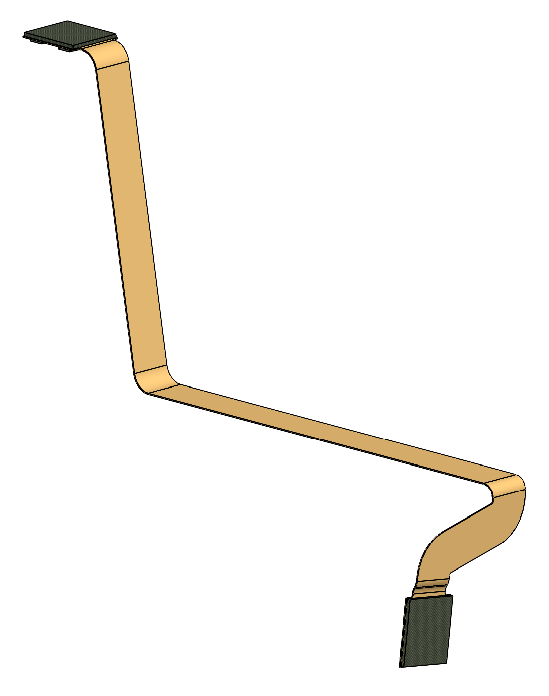

3202 2x80 90 30zz
3203 2x80 90 -
3204 2x97 90 30zz
3301 45zz 90 45zz

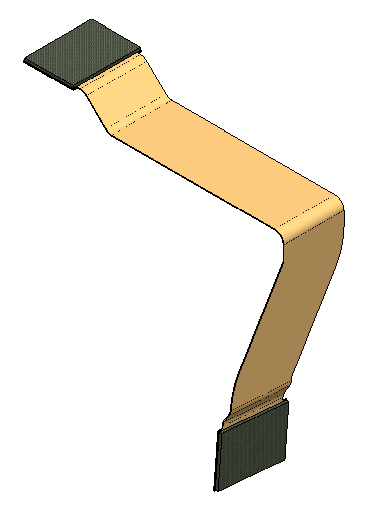

3302 2x45 90 45zz
3303 20zz 90 40zz
3304 2x45 90 45zz

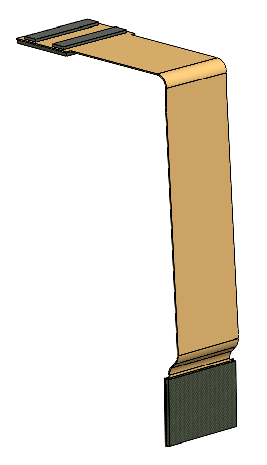

3401 - 90 45zz

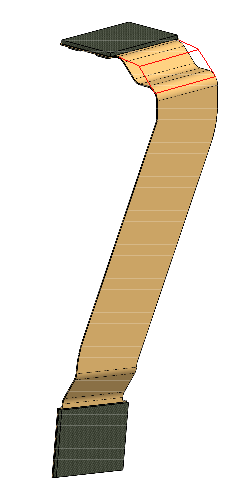

3402 45 45 2x30 >>> changed
3403 - 90 45zz
3404 45 45 45zz >>> changed

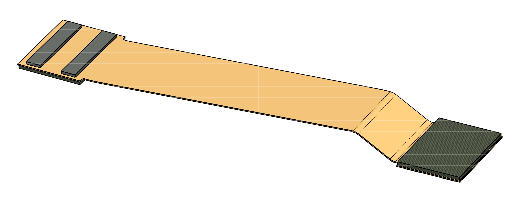

3501 - - 2x30

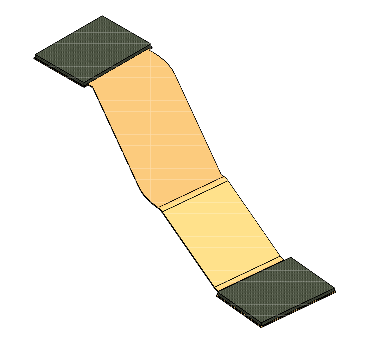

3502 - - 2x30

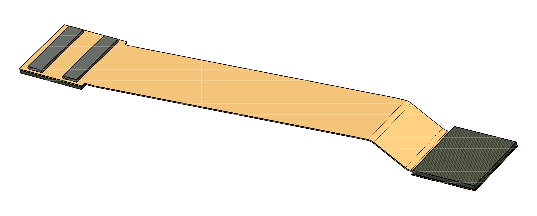

3503 - - 2x30
3504 - - 2x30
'2x30' means that this is a zigzag, where the two 30-degree bends
are far enough apart to be made in two separate operations.
'30zz' means they are too close, and they are made in one operation,
without heating.
